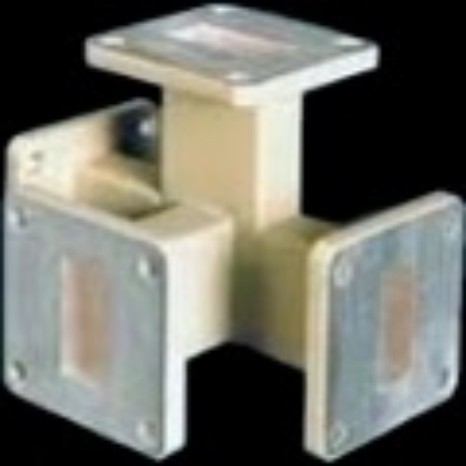

Keyee Microwave manufactures Waveguide Magic Tee includes E Plane Tees, H Plane Tees, Hybrid Tees and Magic Tees 0.3 to 110GHz. It is four-port coupler for matching, balance and isolation. E-plane to H-plane Isolation is a function of the symmetry which is carefully balanced on each unit. If the E-plane port 4 or the H-plane port 2 are used as inputs the split is on the output collinear ports 1 and 3. When the input is E plane port 4 the outputs are out of phase 180 deg. This feature is widely used in monopulse antenna feed structure and phasing testing setup.
For more information feel free to call us and discuss your needs with one of our design engineers.
